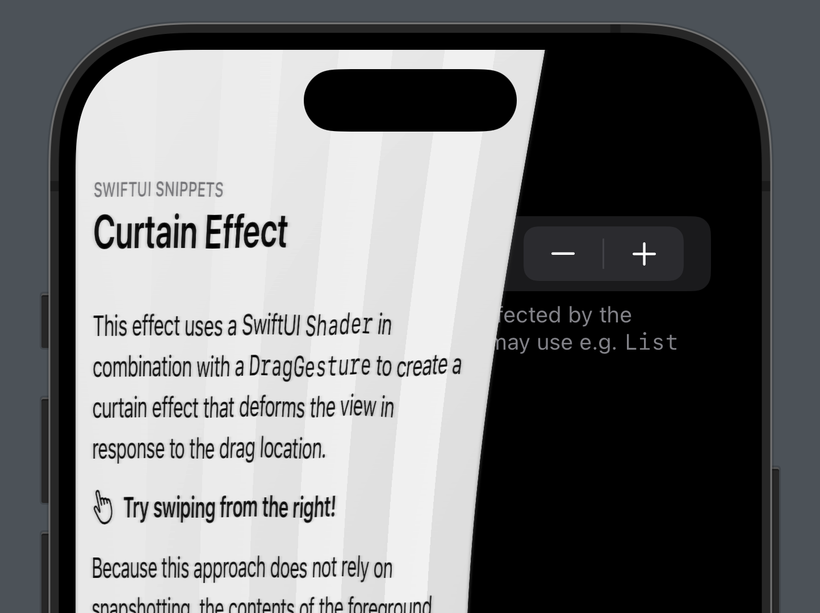

SwiftUI Snippet: Curtain Effect

import SwiftUI

struct CurtainStack<Foreground: View, Background: View>: View, Animatable {
  /// The position of the current drag operation, or `nil`.
  @State private var dragPosition: CGPoint?

  /// `true` if the bottom layer is revealed.
  @State private var isRevealed: Bool = false

  var foreground: Foreground

  var background: Background

  /// The number of folds the curtain has.
  var folds: Int

  init(folds: Int = 4, @ViewBuilder foreground: () -> Foreground, @ViewBuilder background: () -> Background) {
    self.folds = folds
    self.foreground = foreground()
    self.background = background()
  }

  var body: some View {
    GeometryReader { p in
      let maxX = p.size.width

      // A simple drag gesture.
      //
      // We want to track the the drag in the coorindate of this view,
      // not the view we will end up installing it on, thus requiring us
      // to reference an explicity coordinate space.
      let drag = DragGesture(minimumDistance: 0, coordinateSpace: .named("curtain"))
        .onChanged { v in
          withAnimation(.interactiveSpring) {
            var position = v.location
            position.x = rubberClamp(44, position.x, 1_000_000)

            dragPosition = position
          }
        }
        .onEnded { v in
          if v.predictedEndLocation.x < 100 {
            isRevealed = true

            withAnimation {
              dragPosition?.x = 44
            }
          } else {
            isRevealed = false

            withAnimation {
              dragPosition?.x = maxX
            }
          }
        }

      ZStack {
        background
          .safeAreaPadding(EdgeInsets(top: 0, leading: 44, bottom: 0, trailing: 0))

        foreground
          .modifier(CurtainEffect(
            foldCount: folds,
            dragPosition: dragPosition ?? CGPoint(x: maxX, y: 0),
            maxX: maxX
          ))
          .allowsHitTesting(!isRevealed)
          .accessibilityHidden(isRevealed)
          .shadow(radius: isRevealed ? 10 : 0)
      }
      .overlay(alignment: isRevealed ? .leading : .trailing) {
        // We install the `DragGesture` on an invisible rect on the edge
        // of the view. This makes sure the swipe can only be started
        // here.
        Color.clear
          .contentShape(Rectangle())
          .frame(width: 44)
          .gesture(drag)
      }
      .coordinateSpace(.named("curtain"))
    }
  }
}

struct CurtainEffect: ViewModifier, Animatable {
  var animatableData: AnimatablePair<CGFloat, CGFloat> {
    get {
      AnimatableData(dragPosition.x, dragPosition.y)
    }
    set {
      dragPosition.x = newValue.first
      dragPosition.y = newValue.second
    }
  }

  /// The location of the drag in the coordinate space of `content`.
  var dragPosition: CGPoint

  var maxX: CGFloat

  var foldCount: Int

  /// See Curtain.metal
  let shaderFunction = ShaderFunction(library: .default, name: "curtain")

  init(foldCount: Int = 4, dragPosition: CGPoint, maxX: CGFloat) {
    self.foldCount = foldCount
    self.dragPosition = dragPosition
    self.maxX = maxX
  }

  func body(content: Content) -> some View {
    let shader = Shader(function: shaderFunction, arguments: [
      .boundingRect,
      .float2(max(20, animatableData.first), animatableData.second),
      .float(Float(foldCount))
    ])

    let isEnabled = dragPosition.x != maxX

    content

      .visualEffect { content, geometryProxy in
        content
          .layerEffect(
            shader,
            maxSampleOffset: CGSize(width: geometryProxy.size.width, height: 20),
            isEnabled: isEnabled
          )
      }
  }
}

#Preview {
  CurtainExample()
}

struct CurtainExample: View {
  enum Foreground: String {
    case text
    case grid
  }

  @State
  var foldCount: Int = 4

  @State
  var foreground: Foreground = .text

  @State
  var date = Date.now

  var body: some View {
    CurtainStack(folds: foldCount) {
      VStack(alignment: .leading, spacing: 12) {
        VStack(alignment: .leading) {
          Text("SwiftUI Snippets").font(.caption.weight(.medium))
            .textCase(.uppercase).tracking(0.2)
            .foregroundStyle(.secondary)

          Text("Curtain Effect").font(.title.weight(.semibold))
            .padding(.bottom)
        }

        Text("""
        This effect uses a SwiftUI `Shader` in combination with a `DragGesture` to create a curtain effect that deforms the view in response to the drag location.
        """)

        HStack(alignment: .firstTextBaseline) {
          Image(systemName: "hand.point.up.left").imageScale(.large)

          Text("Try swiping from the right!")
            .fontWeight(.semibold)
        }

        Text("Because this approach does not rely on snapshotting, the contents of the foreground layer remain live.")

        Text("For example, this timer continues to update: ") + Text(date, style: .timer)

        Text("However, some caveats still apply:")

        Text("Views backed by UIKit will not display correctly on the top layer, this includes `List` but also `ProgressView`. Instead, the will render like this:")

        ProgressView()

        Text("More importantly, `ScrollView` also doesn't seem to work, limiting how much content you can fit on the screen.")

        Spacer()
      }
      .font(.body.leading(.loose))
      .padding()
      .frame(maxWidth: .infinity, alignment: .leading)
      .background(Color(white: 0.96))
      .colorScheme(.light)
    } background: {
      List {
        Section {
          Stepper("Number of Folds (\(foldCount))", value: $foldCount, in: 1 ... 8)
        } header: {
          Text("Settings")
        } footer: {
          Text("The backdrop view is not affected by the `Shaders`'s limitations and may use e.g. `List` freely.")
        }
      }
      .colorScheme(.dark)
    }
  }
}

private func clamp(_ min: CGFloat, _ value: CGFloat, _ max: CGFloat) -> CGFloat {
  Swift.max(min, Swift.min(value, max))
}

private func rubberClamp(_ min: CGFloat, _ value: CGFloat, _ max: CGFloat, coefficient: CGFloat = 0.55) -> CGFloat {
  let clamped = clamp(min, value, max)

  let delta = abs(clamped - value)

  guard delta != 0 else {
    return value
  }

  let sign: CGFloat = clamped > value ? -1 : 1

  let range = (max - min)

  return clamped + sign * (1.0 - (1.0 / ((delta * coefficient / range) + 1.0))) * range
}

extension Shader.Argument {
  static func float2(_ unitPoint: UnitPoint) -> Self {
    self.float2(unitPoint.x, unitPoint.y)
  }
}

#include <metal_stdlib>
#include <SwiftUI/SwiftUI.h>

using namespace metal;

[[ stitchable ]] half4 curtain(float2 position, SwiftUI::Layer layer, float4 bounds, float2 dragPosition, float foldCount) {
  // The `position` expressed in unit coordinates [0,1].
  float2 uv = position / bounds.zw;

  // The `dragPosition` expressed in unit coordinates [0,1].
  float2 dragUV = dragPosition / bounds.zw;

  // Reveals every row of pixels unformly.
  //
  // 0: The curtain is fully closed.
  // 1: The curtain is fully open.
  //
  // This matches the distance of the drag location to the left edge and thus
  // the location of the user's finger.
  float uniformReveal = saturate(1 - dragUV.x);

  // Abort early if the curtain if fully open.
  if (uniformReveal == 1) return 0;

  // Reveals every row of pixels based on its distance to the drag.
  //
  // We scale `uniformReveal` by multiplying with a Gaussian function that is
  // fed the vertical distance of the current row of pixels to the drag.
  //
  // This results in the row under the finger still being compressed by
  // `revealAmount`, lining up with the users finger.
  //
  // Meanwhile, rows further away "decompress" smoothly, giving the final edge
  // a smooth, bell-curve-like shape.
  //
  // The denominator 0.45 controls how "pointy" the curve is and was determined
  // through trial and error.
  float2 distance = uv - dragUV;
  float localReveal = uniformReveal * exp(-pow(distance.y, 2) / 0.45);

  // For the final compression value, blend between the uniform and local
  // values with a bias towards `curve`.
  //
  // This will make sure that when `uniformReveal` is `1`, `localReveal` will
  // no longer have an effect.
  float compression = mix(localReveal, uniformReveal,  saturate(pow(uniformReveal + 0.15, 1.8)));

  // Scale `uv` horizontally based on `compression`.
  //
  // When the current row of pixels is 0% revealed, `compression` will be 0
  // and thus `uv` will be scaled by `float2(1, 1)`.
  //
  // When the current row of pixels is 50% revealed, `compression` will be 0.5
  // and thus `uv` will be scaled by `float2(2, 1)`.
  //
  // This is the new location at which we will sample `layer`.
  float2 distortedUV = uv * float2(1 / (1 - compression), 1);

  // To create the illusion of the surface of the curtain folding, we need to
  // perform two additional steps.
  //
  // - Move the sample position vertically to create a depth effect as the
  //   material's distance to the camera changes.
  // - Tweak the sampled color to create the illusion of light hitting the
  //   folds.
  //
  // To do this, we model the surface of the scaled material using a wave-like
  // function and calculate its derivative.

  // The period of the waves, `1 / p` is the number of folds we'll see.
  float p = 1.0 / foldCount;

  // We don't want the folds evenly distributed across the surface, so we bias
  // them towards the right edge.
  float biasedX = pow(distortedUV.x, 1.2);

  // Scale factor for the lighting and vertical displacement.
  float foldAmount = distortedUV.x * -(cos(compression * M_PI_F) - 1) / 2;

  // A triangle function that models creases in the curtain and its
  // derivative.
  //
  // See https://en.wikipedia.org/wiki/Triangle_wave
  float fold  = 2 * abs(biasedX / p - floor(biasedX / p + 0.5));
  float foldD = sign(sin(2 * M_PI_F * biasedX / p));

  // Displace the y coorindate of the sample location, scaled by the distance
  // to the vertical center of the layer.
  distortedUV.y += foldAmount * fold * (-12 / bounds.w) * (2 * uv.y - 1);

  // The light we're adding or subtracting.
  half4 highlight = 0;

  if (distortedUV.x < 1) {
    highlight += foldAmount * foldD * half4(half3(0.1), 0);
    highlight -= compression * half4(half3(0.1), 0);
  }

  // The new sample position in the coordinate space of `layer`.
  float2 s = distortedUV * bounds.zw;

  // If the surface of the curtain contains high-frequency content such as
  // text, we'll see shimmering artifacts when it gets compressed too tightly.
  //
  // Since `layer` does not seem to support mipmaps, we perform a
  // one-dimensional Gassian blur to use as a low pass filter, then blend
  // between the "crisp" original `color` value and the `blurred` value based
  // on the amount of compression.

  // The sampling offsets of the blur.
  const float offset[5] = {0.0, 1.0, 2.0, 3.0, 4.0};
  // The weights of the blur.
  const float weight[5] = {0.2270270270, 0.1945945946, 0.1216216216, 0.0540540541, 0.0162162162};

  half4 color = layer.sample(s);
  half4 blurred = color * weight[0];

  // Perform the blur.
  for (int i = 1; i < 5; i++) {
    blurred += layer.sample(s + float2(1, 0) * offset[i]) * weight[i];
    blurred += layer.sample(s - float2(1, 0) * offset[i]) * weight[i];
  }

  // Mix, then add highlight.
  return mix(color, blurred, 1.1 * pow(compression, 1.4)) + highlight;
}
